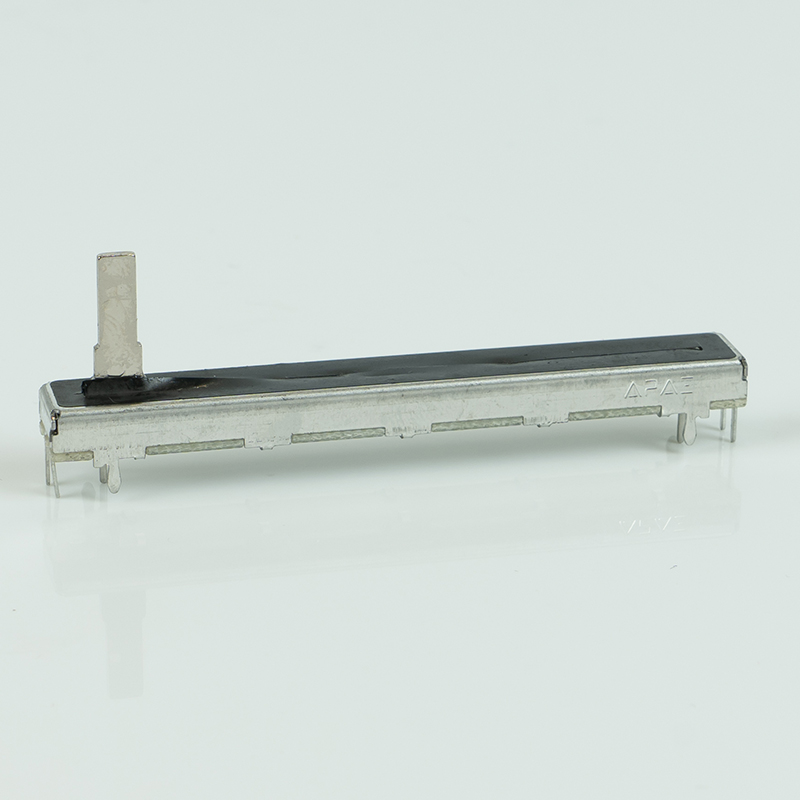

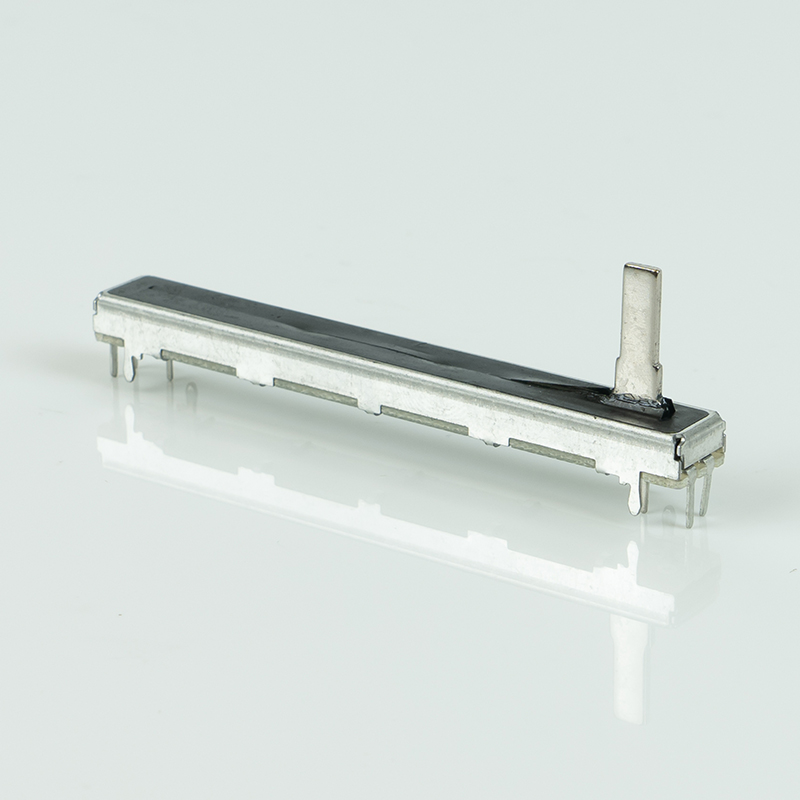

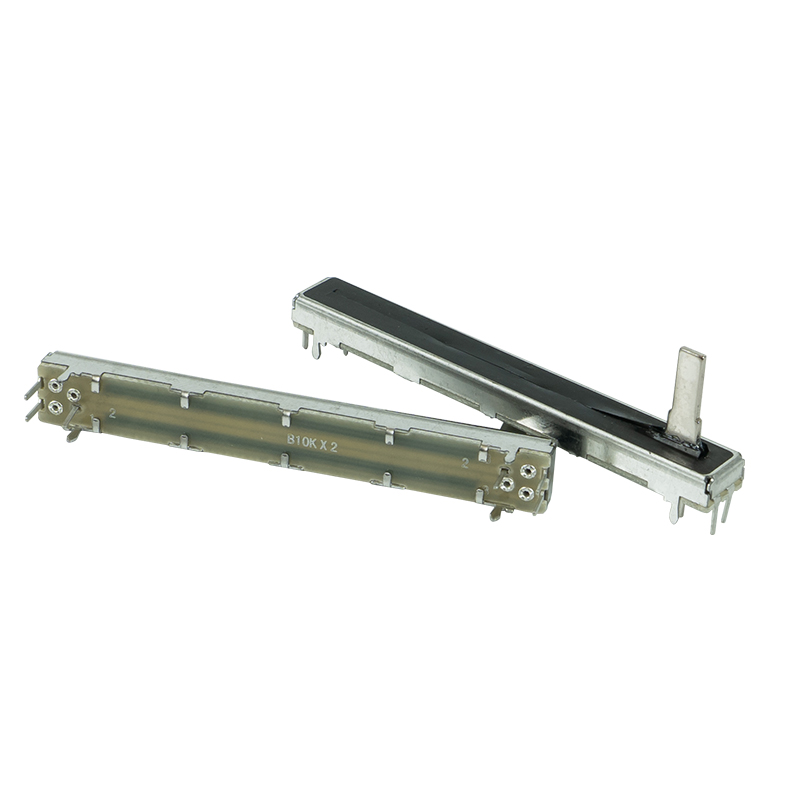

SC6021G 60mm travel slide potentiometer B20K potentiometer fader
Product Features
Operating temperature -10 ℃ ~ +70 ℃
Total resistance 5K ~ 1M
Resistance tolerance ±20% (More than 1M ± 30%)
Resistance taper A B C
Sliding noise Less than 100 mV
Residual resistance Less than 20
Rated power(W) B taper : 0.1 W Others : 0.05 W
Max. operating voltage B taper : AC 100 V Others : AC 50 V
Insulation resistance More than 100 M at DC 250 V
Withstand voltage 1 Minute at AC 300 V
Lever Travel 60 mm±0.5 mm
Operating Force 30 ~ 200 gf.cm
Lever Stopper Strength 5 Kgf.cm Max
Shaft push-pull Strength 3 Kgf.cm Max
Rotational life 15,000 Cycles
1. High-quality materials: Selection of high-quality imported materials ensures the reliability and stability of the sliding potentiometer in different environments and can withstand high-intensity usage conditions.
2. Stable Performance: After rigorous quality testing, the SC2043N performs excellently over extended use, effectively reducing signal interference and providing precise adjustment.
3. Lightweight design: The potentiometer is lightweight and easy to install and use, suitable for the needs of various equipment and reduces the weight of the overall equipment.
4. Long service life: The SC2043N's service life far exceeds industry standards, enabling it to withstand extended, intensive use, reducing replacement frequency and saving maintenance costs.
5. Widely applicable: Whether it is audio amplifiers, audio equipment, or household appliances, medical equipment, communication electronic equipment and remote control equipment, the SC2043N can perfectly adapt to meet the needs of different customers.
6. Support OEM/ODM processing customization: We provide flexible customization services and can carry out personalized design and production according to the specific needs of customers, ensuring that every customer can find the most suitable solution.
Sliding Potentiometer SC6021G
-
OEM/ODM processing customization/free samplingCustomized processing according to samples/customized processing according to drawings
Product Details
Ensure that every product is a fine product and guarantee the quality of your product
-
01
-
02Stable performancelong adjustable stroke, good feel
-
03Small sizeMiniaturization/pressing life: 20,000-100,000 times
-
04Secure wiringSmall size, not easy to damage and flexible operation
-
05High toughness shell
Rest assured of excellent material selection
Made of imported phosphor bronze, brass, zinc alloy, aluminum alloy, plastic materials and hardware materials
One-piece injection molding, strong pressure resistance
application
-
Dimming equipment
-
Home appliance industry
-
Audio industry
-
Automotive Electronics
-
Home Audio
-
medical devices
-
gaming industry
-
Other equipment
